X-Band Upconverters and Downconverters

Cross offers a variety of X-band upconverters, downconverters, and block converters covering a frequency range of 18GHz to 40GHz. Options include SSPB/LNB power, M&C Remote interface, RS-485/222, Ethernet with SNMP (RS-232 standard), and a wide range of connector/impedance combinations to suit your needs.
See our complete line of Ka-band converters below.
Need a custom product? That's our specialty! Contact us with your unique specifications.

Featured Products

4116-22-8085 X-Band Downconverter
$14,495
Data Sheet   |   Manual

The 4116-22-8085 Block Downconverter is a multi-channel converter that converts two 8.00-8.50 GHZ RF channels to 1.0 - 1.5 GHz with a common LO of 7.00 GHz.
4116 X-band Downconverter block diagram

2016-8085 X-Band Downconverter
$6,295
Data Sheet   |   Manual

The 2016-8085 Downconverter converts 8.0-8.5 GHz to 70 ± 18 MHz in 125 kHz steps.

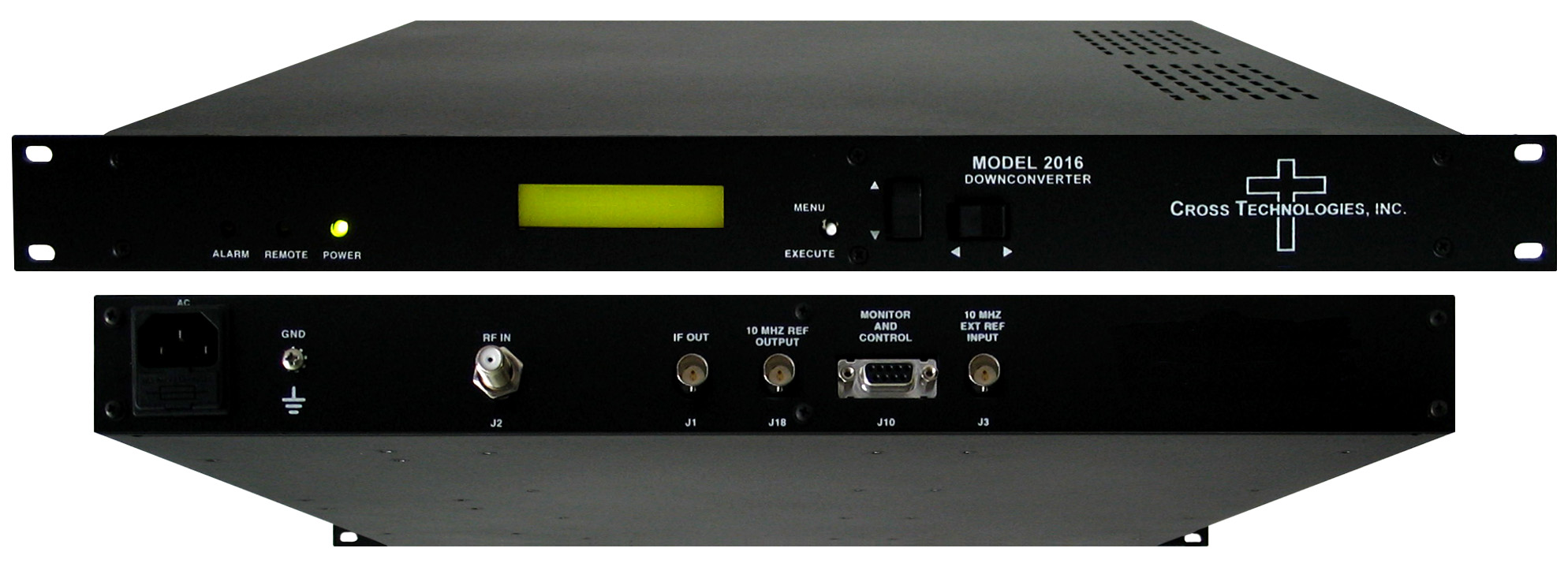

2016 X-band Downconverter

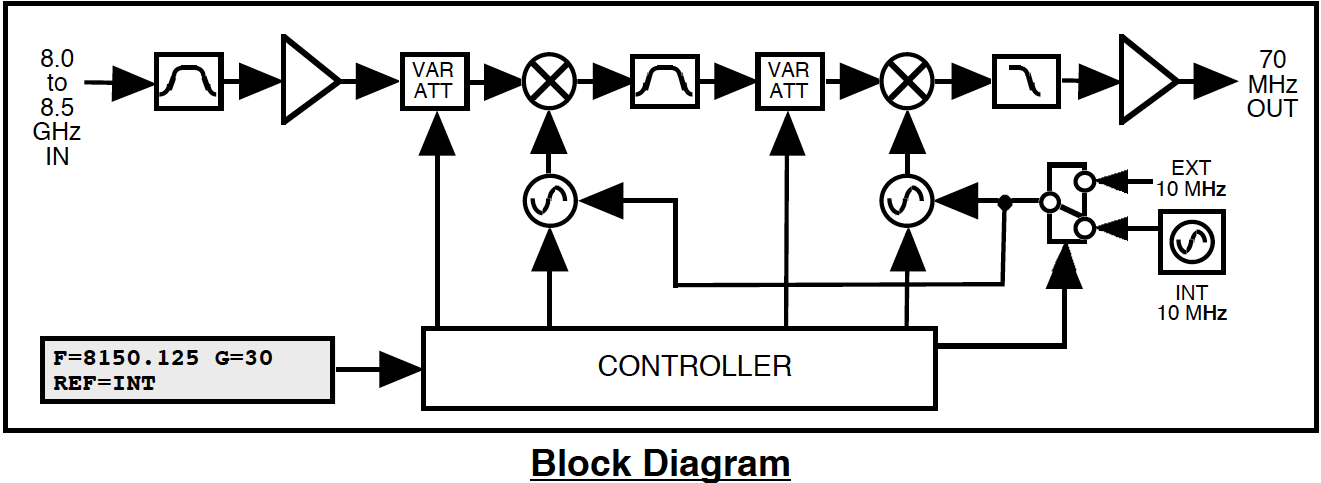

2016 X-band Downconverter block diagram

Cross Technologies Product Brochure (PDF)
View a Printer-friendly Version of our Complete Catalog
Data Sheets and Manuals are in PDF format

X-Band Converters (7.25 - 10.5 GHz)
To view models that are no longer in production, click here.
Model No. Description Data Sheet Manual Price*
  Upconverters
2015-7984-720-400 Upconverter converts 720 ± 200 MHz 7.9-8.4 GHz in 125 kHz steps Data Sheet Manual $7,795
2115-79 Block Upconverter, 0.95-1.45 GHz 7.9-8.4 GHz Data Sheet Manual $4,745
3115-33-95 Block Upconverter, 3 Channel converts 0.95-1.95 GHz 3 different RF bands Data Sheet Manual $9,495
3115-72 Block Upconverter, 0.95-1.45 GHz 7.25-7.75 GHz Data Sheet Manual $5,695
3115-72-3840 Block Upconverter, 3.59-4.09 GHz 7.25-7.75 GHz Data Sheet Manual $8,045
3115-79 Block Upconverter, 0.95-1.45 GHz 7.9-8.4 GHz Data Sheet Manual $5,695
3115-107-1975 Agile Upconverter, 1975 ±125 MHz 10.7-12.7 GHz Data Sheet Manual $9,595
3115-6771 Block Upconverter, 0.95-1.35 GHz 6.700-7.100 GHz Data Sheet Manual $5,695
3115-7075 Block Upconverter, 0.95-1.45 GHz 7.00-7.50 GHz Data Sheet Manual $5,895
3115-7984-720-400# Block Upconverter, 720 ± 200 MHz 7.9-8.4 GHz Data Sheet Manual $6,595
3115-8287 Block Upconverter, 0.95-1.45 GHz 8.20-8.70 GHz Data Sheet Manual $5,695
  Downconverters
2016-8085 Downconverter, 8.0-8.5 GHz 70 ±18 MHz Data Sheet Manual $6,295
2016-8085-720 Downconverter, 8.0-8.5 GHz 720 ± 20 MHz in 125 kHz steps Data Sheet Manual $7,695
2116-72 Block Downconverter, 7.25-7.75 GHz 0.95-1.45 GHz Data Sheet Manual $4,745
2116-73 Block Downconverter, 7.25-7.75 1.45-1.95 GHz Data Sheet Manual $4,745
2116-78#-1100 Block Downconverter, 7800 ±200 MHz 1100 ±200 MHz Data Sheet Manual $4,745
2116-80 Block Downconverter, 8.0-8.7 GHz 0.95-1.65 GHz Data Sheet Manual $5,295
3116-72 Block Downconverter, 7.25-7.75 GHz 0.95-1.45 GHz Data Sheet Manual $5,695
3116-76-1200 Block Downconverter, 7.675-8.725 GHz 1200 ± 325 MHz Data Sheet Manual $6,395
3116-77#-1200 Block Downconverter, 7.75-8.45 GHz 1200 ± 20 MHz Data Sheet Manual $5,845
3116-79 Block Downconverter, 7.9-8.4 GHz 0.95-1.45 GHz Data Sheet Manual $5,795
3116-79-3840 Block Downconverter, 7.9-8.4 GHz 3.59 -4.09 GH Data Sheet Manual $8,045
3116-80-2050 Block Downconverter, 8.0-8.5 GHz 1.80-2.30 GHz  Data Sheet Manual $6,495
3116-84T78 Translator Converts 7.9-8.4 GHz 7.25-7.75 GHz Data Sheet Manual $6,345
3116-7075 Block Downconverter, 7.00-7.50 GHz 0.95-1.45 GHz Data Sheet Manual $5,695
3116-7786-1200 Block Downconverter, 7.75-8.65 GHz 1200 ± 150 MHz Data Sheet Manual $6,595
3116-7786-2150 Block Downconverter, 7.75-8.65 GHz 2150 ± 150 MHz Data Sheet Manual $6,195
3116-7890 Block Downconverter, 7.8-9.0 GHz 0.95-2.15 GHz Data Sheet Manual $6,145
3116-7984-720-400# Block Downconverter, 7.9-8.4 GHz 720 ± 200 MHz Data Sheet Manual $6,595
3116-8287 Block Downconverter, 8.20-8.70 GHz 0.95-1.45 GHz Data Sheet Manual $6,295
  Combo Up+Downconverters
2117-7172 Up/Downconverter, 2.0 7.2 GHz Up; 7.2 1.6 GHz Down Data Sheet Manual $7,795
2117-7173 Up/Downconverter, 7.17-7.255 GHz 2.025-2.11 GHz Data Sheet Manual $7,795
2117-8485 Up/Downconverter, 1.85 8.45 GHz Up; 8.45 1.55 GHz Down Data Sheet Manual $8,495
2117-8486 Up/Downconverter, 2.25 8.45 GHz Up; 8.45 2.25 GHz Down Data Sheet Manual $8,895
2117-9395 Up/Downconverter, 2.10 9.40 GHz Up; 9.40 1.70 GHz Down Data Sheet Manual $8,495
  Frequency Translators
2083-7216# Translator, 7216.6 MHz 1686.6 MHz, ±18 MHz Data Sheet Manual $3,395
  Multi-channel Solutions
3115-33-95 Block Upconverter, 3 Channel converts 0.95-1.95 GHz 3 different RF bands Data Sheet Manual $9,495
4116-22-8085 Block Downconverter, 8.00-8.50 GHz, 2-Channel, Weather Resistant Data Sheet Manual $14,495
Options - Frequency Converters
FEATURE OPTIONS - Agile Converters (Contact Cross for Other Options)
Option Description 2015 2016 2017
E The External 10MHz Reference $150 $150 $200
H High Stability (±0.01 ppm) Internal Reference $500 $500 $500
L LNB Power, +24 VDC, 0.5 Amps $150 $150 $150
V SSPB Voltage, +24 VDC, 0.5 Amps $300 $300 $300
V41 SSPB Voltage, +48 VDC, 2.1 Amps, 100 W $450 $450 $450
V48 SSPB Voltage, +48 VDC, 1.25 Amps, 60 W $300 $300 $300
Q RS-485 M&C Interface (Includes RS-232) $100 $100 $100
R Redundant Power Supply $250 $250 $250
T Temperature Sensor $75 $75 $75
X 125 kHz Frequency Step Size $200 $200 $400
X1 100 kHz Frequency Step Size $200 $200 $400
Z Attenuator, 0.1 dB Steps for either 2015-xx Upconverter or the Upconverter ONLY Side of 2017-xx Up/Downconverter $300 N/A $300
Z5 Attenuator, 0.5 ± 0.5 dB Steps for 2015-xx Upconverter or 2016-xx Downconverter $300 $300 $400
SAWx SAW Filter Option Where x = Bandwidth N/A $400 $400
W8 Ethernet M&C Remote Interface (Web Browser) $500 $500 $500
W18 Ethernet M&C Remote Interface (Web Browser & SNMP) (mib provided) $700 $700 $700
W28 Ethernet M&C Remote Interface (TCP/IP) $500 $500 $500
W828 Ethernet M&C Remote Interface (Web Browser, SNMP, TCP/IP) (mib provided) $900 $900 $900
CONNECTOR OPTIONS - Agile Converters (Contact Cross for Other Options)
Option Description 2015 2016 2017
B All RF and IF Connectors - 75 Ω BNC $100 $100 $300
C RF - 50 Ω BNC / IF - 75 Ω BNC $100 $100 $150
D All RF and IF Connectors - 50 Ω BNC $100 $100 $150
F RF - 75 Ω F-type / IF - 75 Ω F-type $100 $100 $150
J RF - 75 Ω F-type / IF - 50 Ω BNC $100 $100 $150
K RF - 75 Ω BNC / IF - 50 Ω BNC $100 $100 $150
M RF - 50 Ω N-type / IF - 50 Ω BNC $200 $200 $300
N RF - 50 Ω N-type / IF - 75 Ω BNC $200 $200 $300
NF RF - 50 Ω N-type / IF - 75 Ω F-type $200 $200 $300
NN All RF and IF Connectors - 50 Ω N-type $300 $300 N/A
NS RF - 50 Ω N-type / IF - 50 Ω SMA $200 $200 $300
SN RF - 50 Ω SMA / IF - 50 Ω N-type $200 $200 $300
SS All RF and IF Connectors - 50 Ω SMA $300 $300 $450
S RF - 50 Ω SMA / IF - 50 Ω BNC $200 $200 $300
S7 RF - 50 Ω SMA / IF - 75 Ω BNC $200 $200 $300
SF RF - 50 Ω SMA / IF - 75 Ω F-type $200 $200 $300
CONNECTOR OPTIONS - Block Converters (Contact Cross for Other Options)
Option Description   2115 2116
NN All RF and IF Connectors - 50 Ω N-type   $200 $200
NS RF - 50 Ω N-type / IF - 50 Ω SMA   $200 $200
SN RF - 50 Ω SMA / IF - 50 Ω N-type   $200 $200
SS All RF and IF Connectors - 50 Ω SMA   $300 $300
*All prices subject to change without notice.
